BLOC-O-LIFT - Molle a gas bloccabili



Regolazione senza soluzione di continuità, bloccaggio rigido o a molla

Le ribalte e i coperchi hanno spesso un elevato peso proprio e si possono usare solo esercitando una certa forza con le mani. Le sedie e i tavoli devono potersi adeguare alla statura dell'utilizzatore per tener conto degli aspetti ergonomici. In questi casi, le molle a gas bloccabili STABILUS garantiscono un'ottimale compensazione del peso e movimenti user-friendly all'apertura, chiusura e posizionamento. I nostri prodotti della serie BLOC-O-LIFT, molle a gas bloccabili, si possono anche bloccare senza soluzione di continuità, cioè rigidamente o a molla nella direzione di tiro o di pressione a seconda della struttura desiderata.

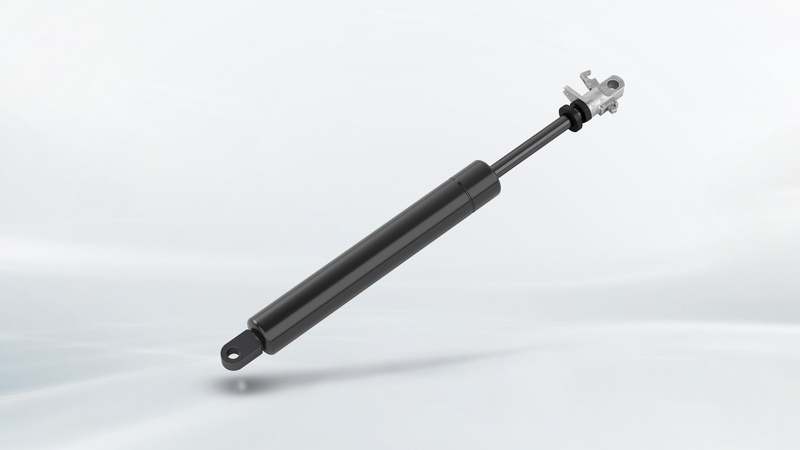

Molle a gas bloccabili e relativo funzionamento

Le molle a gas bloccabili sella serie BLOC-O-LIFT sono dotati di un sistema speciale pistone-valvola che separa l'una dall'altra entrambe le camere di pressione della molla. Questo permette il bloccaggio senza soluzione di continuità e senza alcuno sforzo. Se la punteria della valvola viene abilitata dall'esterno e si interrompe lo scambio tra entrambe le camere di pressione, l'ammortizzatore si blocca. Le molle a gas bloccabili STABILUS mantengono nella posizione desiderata in maniera affidabile anche i carichi pesanti. Quando la valvola è aperta, la caratteristica lineare dell'ammortizzatore BLOC-O-LIFT garantisce un aumento uniforme della forza sull'intero campo di movimento.

Le molle a gas bloccabili BLOC-O-LIFT offrono soluzioni per qualsiasi esigenza

Il nostro programma standard offre una vasta gamma di molle a gas bloccabili e quindi il prodotto giusto per qualsiasi posizione di montaggio.

Grazie al nostro know-how pluriennale come pionieri nella produzione di molle a gas, staremo al vostro fianco anche come partner di sviluppo. Insieme elaboreremo la soluzione giusta per la vostra specifica esigenza. I vostri vantaggi

  • Posizionamento senza soluzione di continuità con bloccaggio rigido o a molla
  • Compensazione ottimale del peso al sollevamento, abbassamento, apertura e chiusura
  • Arresto nella posizione di espulsione o di inserimento
  • Montaggio dipendente o indipendente dalla posizione a seconda del tipo
  • Caratteristica piatta dell'ammortizzatore per un ridotto aumento della forza anche con forze e corse elevate
  • Caratteristica lineare, progressiva o degressiva dell'ammortizzatore
  • Sistemi di sgancio meccanico, anche con una corsa di sgancio particolarmente piccola per un comando molto semplice
  • Vasta scelta di dimensioni, forze e attacchi
  • Struttura compatta, minimo ingombro
  • Senza manutenzione, anche con forte sollecitazione ed elevata durata utile
  • Prodotti di elevata qualità conformi alle disposizioni della norma DIN EN ISO 9001 e allo standard mondiale ISO/TS 16949

Varianti

  • BLOC-O-LIFT – esecuzione standard per molle a gas bloccabili, bloccati a molla
  • BLOC-O-LIFT – molle a gas bloccabili, bloccati rigidamente in direzione di tiro o di pressione
  • BLOC-O-LIFT – molle a gas bloccabili con funzione override, come protezione dal sovraccarico
  • BLOC-O-LIFT OBT – molle a gas bloccabili per il sollevamento sicuro e comodo dei piani dei tavoli senza sganciamento
  • BLOC-O-LIFT T – molle a gas bloccabili per la regolazione in altezza con distribuzione uniforme della forza sull'intera corsa
  • KOMBI-LIFT – funzionalità combinata dei campi bloccabili e non bloccabili per applicazioni speciali
  • Sistemi di sgancio BLOC-O-LIFT
  • STAB-O-MAT / STAB-O-BLOC – molle a gas bloccabili speciali per la regolazione in altezza delle sedie girevoli
BLOC-O-LIFT Elastic Locking

Variable Adjustment Option with Elastic Locking

In its standard version, the BLOC-O-LIFT is an elastic locking gas spring that not only allows you to adjust furniture and flaps conveniently and easily, but also to position them variably, where they will be held safely.

Its preferred use is in the backrest adjustment of swivel chairs, where a slight bounce is desirable from an ergonomic point of view.



Function

The locking function is made possible by a special piston / valve system which creates a leak-proof separation between the two pressure chambers in the spring. With the valve open, BLOC-O-LIFT will provide force assist, ensuring user-friendly motion sequences due to its predefined damping characteristics. When the valve is closed, the gas spring will lock with a slight bounce in the desired position.

The standard BLOC-O-LIFT is filled with gas and should be installed with the piston rod pointing down.



Advantages

  • Variable elastic locking and optimized weight compensation during lifting, lowering, opening, and closing
  • Comfortable bouncing and damping of shocks, impacts, or sudden peak loads
  • Flat spring characteristic curve; i.e., low force increase even for high forces or large strokes
  • Compact design for installation in small spaces
  • Easy mounting due to a variety of end fitting options

Application Examples

  • Elastic locking in backrest adjustment of swivel chairs or massage chairs
  • Height adjustment of physician’s stools with foot actuation
  • Generally suited for elastic locking of elements where no additional loads need to be held besides the application load
BLOC-O-LIFT with Rigid Locking in any Mounting Position

Gas Spring with Rigid Locking in the Direction of Tension or Compression

BLOC-O-LIFT springs from STABILUS even hold larger loads safely and reliably in place.



Function

Unlike the purely gas-filled, elastic locking standard BLOC-O-LIFT spring, the entire stroke is filled with oil in this version, allowing rigid locking. A special separating piston separates the gas chamber from the oil chamber. Depending on the type, this will provide different locking forces in the extension direction (tensile lock) or in the compression direction (compression lock).

As an added advantage, the gas spring can be installed in any position.



Advantage

  • Very high oil locking force
  • Can be installed in any orientation
  • Variable locking and optimized weight compensation during lifting, lowering, opening, and closing
  • Compact design for installation in small spaces
  • Easy mounting due to a variety of end fitting options

Application Example

  • Head and foot panel adjustments in hospital beds, operating tables, wheelchairs
  • Height adjustment in walker
  • Armrest, headrest, driver seat adjustment
  • Desktop/table height and inclination adjustment
BLOC-O-LIFT T

Locking Gas Spring with Height Adjustment and Even Force Distribution over the Entire Stroke

The BLOC-O-LIFT-T gas spring from Stabilus is used primarily for the convenient adjustment of table heights.



Function

The very flat characteristic curve provides virtually even force assist over the entire stroke. This makes it easy to adjust the table top, regardless of its weight, without the table losing stability or strength.

This gas spring can be installed in any orientation. The lock can be released optionally by hand or foot lever allowing the table height to be adjusted fast and easily.



Your Advantages

  • Fast and easy adjustment due to low compression damping and even force distribution over the entire stroke
  • Compact design with a long stroke
  • Mounting in any orientation possible
  • Table is locked rigidly in any position

Application Examples

  • Pub tables (single base tables)
  • Desks (two-column desks)
  • Speaker pulpits
  • Nightstands
  • Height-adjustable kitchen counters
  • RV tables
BLOC-O-LIFT Actuation Systems

Mechanical BLOC-O-LIFT release systems for ultimate convenience



STABILUS offers different release systems for BLOC-O-LIFT gas springs.

SOFT-O-TOUCH
Cable release

This program offers complete release systems with an attractive design. Five different ergonomic push-buttons and levers with axial or lateral Bowden cable configurations as well as two different release heads give you even more flexibility in your design and in positioning the gas spring in your application.



Further BLOC-O-LIFT release systems

In the standard version, the BLOC-O-LIFT uses a sliding valve with an release stroke of 2.5 mm. A seat valve is available for short stroke of 1 mm and very easy operation.

Indirect Bowden cable release:

A Bowden cable release is used when the release mechanism cannot be installed directly on the gas spring. This system consists of a release head, a Bowden cable with optional lengths, and the release unit.



Direct release:

For applications with direct release on the gas spring, there are release heads with diefferent lever variants.

We will gladly help you select the right system.

Application Examples

  • Backrest and armrest adjustment in swivel chairs
  • Table height adjustment
  • Head and foot panel adjustment in treatment tables and beds
BLOC-O-LIFT with Rigid Locking for Vertical Mounting

Gas Spring with Rigid Locking for Vertical Installations

A cost efficient alternative in rigid locking gas springs can be achieved if BLOC-O-LIFT from STABILUS is mounted almost vertically.



Function

Since oil cannot be compressed, gravity will ensure the usual safe holding force. Consequently, the additional piston as a separating element between gas and oil will not be necessary.

In this version, the entire working stroke of the piston is located in the oil layer, allowing the required rigid locking of the BLOC-O-LIFT in any position.

For locking in the compression direction, the BLOC-O-LIFT must be installed with the piston rod pointing up. In the rare cases where locking in the extension direction is desired, a BLOC-O-LIFT version with the piston rod pointing down should be mounted.



Advantages

  • Cost-efficient variant with very high rigid oil locking force
  • Variable rigid locking and optimized weight compensation during lifting, lowering, opening, and closing
  • Compact design for installation in small spaces
  • Easy mounting due to a large variety of end fitting options
BLOC-O-LIFT OR

The Locking Gas Spring with Overload Protection

In addition to variable locking, this BLOC-O-LIFT variant from Stabilus is equipped with a so-called override function, which protects components from overload and significantly facilitates handling.



Function

In the tension override function, the gas spring will lock rigidly in the compressed state. If too high a tensile force is applied to the piston rod, an overload valve in the piston will open automatically and release the lock. The gas spring extends, thereby protecting the application from damage, e.g., from hitting the floor.

This variant is preferred in chairs and beds or treatment tables and beds. Head and foot panels can be adjusted without operating a separate actuation mechanism.

In the compression override function, the gas spring will lock in the extended state. In this version, too, an overload valve will open as soon as the load on the gas spring extends a defined limit. The lock will be released, the piston rod retracted slowly, protecting the application from overload. Proven protection that is often used in the height and tilt adjustment of desk and table tops.



Your Advantages

  • Depending on the version, the gas spring is protected against overload pressure in the locked state, preventing damage to the application
  • Easy handling
  • Override force can be freely defined within certain limits
  • Can be realized in rigid locking gas springs in any or vertical mounting orientation

Application Examples

  • Head and foot sections of treatment tables, hospital beds, massage tables
  • Seat and foot section adjustments in recliners and beds
  • Tables, desks with height and/or tilt adjustment
BLOC-O-LIFT OBT

Gas Spring without Locking in Extension Direction

Customized for safe and comfortable handling, mobile bedside tables for hospital and nursing home beds benefit from a gas spring with infinitely variable height adjustment – BLOC-O-LIFT OBT (Over Bed Table).



Function

It will lock rigidly in any desired position; it can be pulled out immediately without actuation if the situation so requires.

In an emergency, the table top can be moved up and away using light pressure from below. The actuation lever is only required for lowering the table.

Usually, the OBT function of Stabilus gas springs is used in vertical installations.



Your Advantages

  • Fast and safe lifting of locked table tops without an actuation mechanism.
  • Simplified handling of the tables increases safety

Application Examples

  • Table adjustment systems in hospital nightstands and in school furniture
KOMBI-LIFT

Combined Functionality for Special Applications

With KOMBI-LIFT, a lid can be closed from two selectable positions.

Tailgates of high vehicles (vans) are protected from slamming into the garage ceiling or door. This will also allow shorter people to limit the opening angle of the trunk, facilitating the use of their car.



Function

The KOMBI-LIFT from Stabilus combines the advantages of locking and non-locking gas springs. With a lever on the piston rod, a defined partial range of the stroke can be locked during extension.

For this purpose, the KOMBI-LIFT is equipped with a special groove in the pressure tube. When the valve is open, the lid will open across the entire opening angle to the end position.

With the valve closed, the piston rod can only move within a range that corresponds to the opening angle specified in the groove. The functional areas can be arranged in any form over the entire stroke.

The lid will close and, consequently, the gas spring will compress without actuation.

Your Advantages

  • Closing a lid from two selectable positions
  • Combined functionality of locking and non-locking gas springs for special applications
  • Freely selectable function ranges over the entire stroke
  • Different actuation systems for locking gas springs usable

Application Examples

  • Tailgates of high vehicles (vans)
  • Lid limitation in cab construction for utility vehicles
